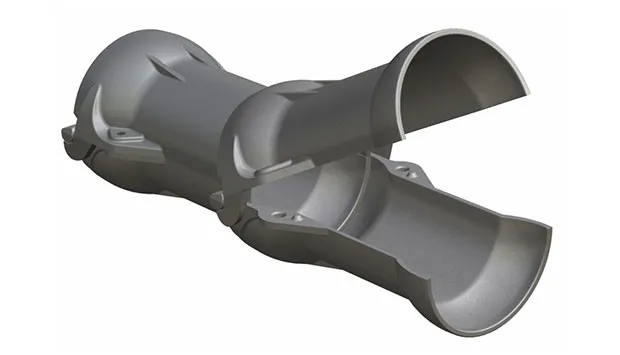

PS280/500/10
Articulated Pipe (Split Pipe)
Download Specifications (PDF)
Contact Us for a Quote
Specifications
Product Name
Protectorshell Articulated Pipe
Product Type
Cable Protection System (CPS)
Model
PS280/500/10
Segment Length - Overall
571mm
Effective Installed Length/segment pair
500mm
Minimum Internal Diameter
280mm - for cables up to 260mm diameter
Maximum External Diameter
424mm
Wall Thickness
10mm
Material
Ductile Iron to AS1831 / ISO 1083
Tensile Strength / Elongation
400MPa / 15% elongation
Impact Resistance
≥7.5kJ
Minimum Bend Diameter
2.0m
Weight per Segment
46.8kg
Weight per installed metre (air)
93.6kg
Weight per installed metre (water)
80.2kg
Fasteners
M16x70 Bolts and M16 Nyloc Nuts
Material: Stainless Steel G316/A4
Recommended usage: 1 pair per 10 metres of installed pipe
Contact Us for a Quote
Contact us for a quote on Protectorshell Articulated Pipe or our subsea and submarine cable services
Contact Us
